PS5 HDMI port replacement

Same-Day, $109.99
PS5 on but TV says 'No Signal' is the most common PS5 failure: a damaged HDMI port, fixed by micro-soldering a new port in-house under a microscope. Drop off by 5 PM, pick up same evening; $109.99 flat, free diagnostics, 90-day workmanship warranty.
Not in the Charlotte area? Mail it in from anywhere in the U.S.
We replace your PS5's damaged HDMI port at board level, micro-soldering a new port under a microscope at our Charlotte bench. Drop it off by 5 PM and it's usually ready that same evening. The diagnostic is free, the exact price for your model is shown on this page, and the repair carries a 90-day warranty. No fix, no fee.

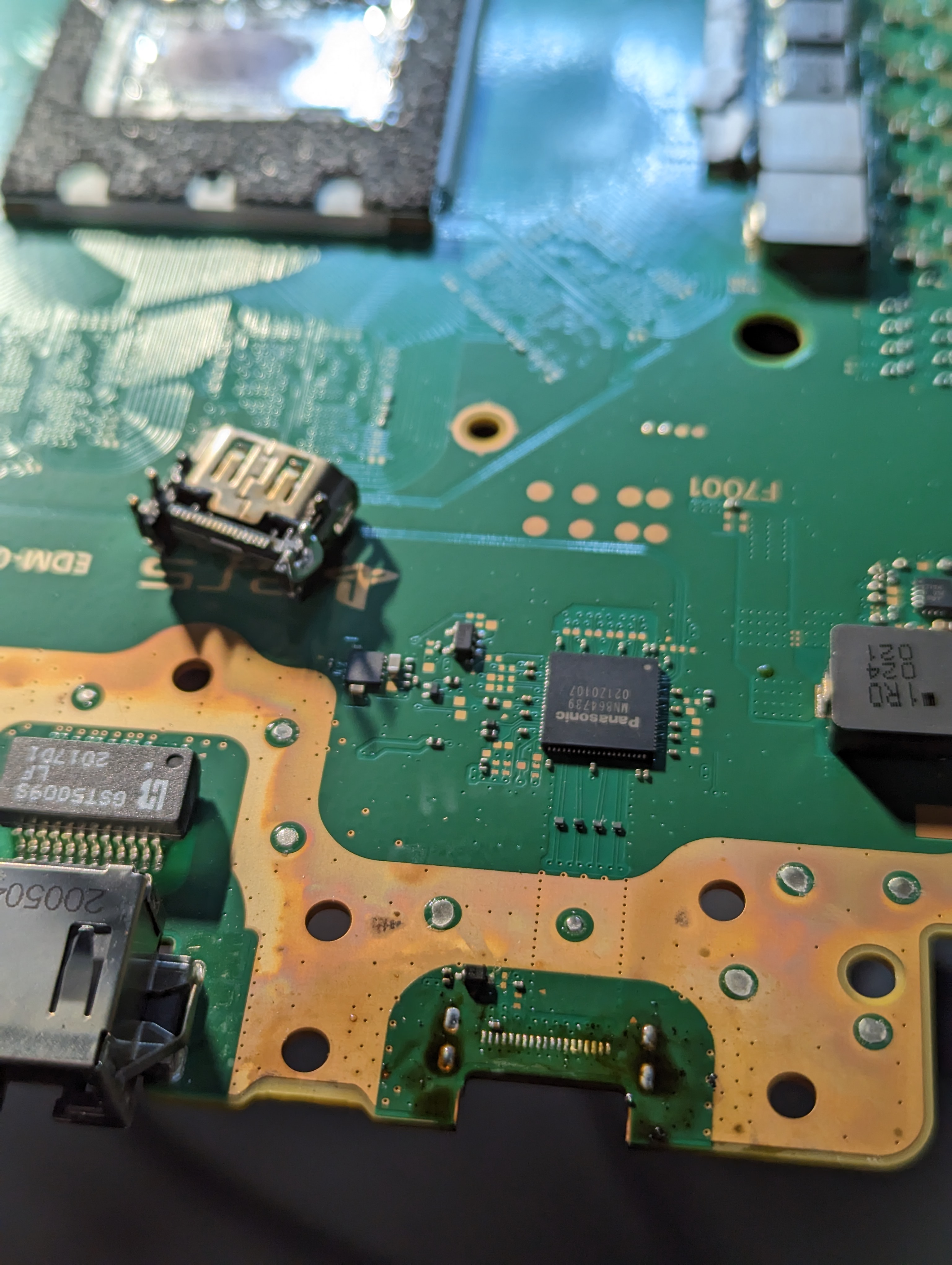

The light glows, the fan spins and the controller may even pair, but the TV never finds the console. That is the classic broken-port symptom on a PS5.
If pushing up or wiggling the plug brings the image back for a second, the pins or the solder joints under the port have cracked.
A healthy PS5 port grips the cable firmly. A port that wobbles has usually broken its housing or started to lift off the board.
Shine a flashlight into the port. A pin that's pushed down or crooked can't make contact, and plugging in again can short it against its neighbor.
Momentary black screens, white sparkle noise or audio that cuts out at 4K or 120Hz often point to a weak connection right at the port.
Tripping over the cord or sliding the console off a shelf levers the plug against the port. The solder joints and the thin metal shell take all of that force.
HDMI only fits one way. Jamming it in at an angle or upside down folds the top row of pins down into the port.
Stiff cables, right-angle adapters and switch boxes hanging off the back put constant leverage on the port until the joints fatigue.
Sometimes the port is fine and the HDMI retimer chip behind it, or the video circuit feeding it, has failed, often after a surge or a bad DIY attempt. We check for that before quoting.
We test with a known-good cable and display, then inspect the port under the microscope. We also confirm the PS5 boots normally, so we know the rest of the console is healthy before we commit to the job.
The covers, fan and metal shielding come off and the motherboard comes out of the chassis. The processor uses liquid metal, so the board is handled flat and with care the whole time.
The port has around 20 solder points between the signal pins and the shell legs. We add fresh solder and flux, heat the area evenly with hot air and lift the port off without cooking nearby parts.
Every pad is cleaned and inspected under magnification for lifts or torn traces. If a pad tore when the port was damaged, it gets rebuilt before the new port goes on.
The new port is aligned, soldered pin by pin, and checked for bridges. The shell legs are soldered through for strength, because they carry the load when a cable gets bumped.
After reassembly we test picture and sound at 4K and at high refresh rates, wiggle the cable to make sure the signal holds, and let the console run before it goes back on the shelf for pickup.
Most PS5 no-signal jobs need only a new port. What we find under the microscope decides whether anything else is needed, and you hear about it before we do it.
The standard repair. The broken port comes off and a new one is soldered on. This is the price shown for your model.

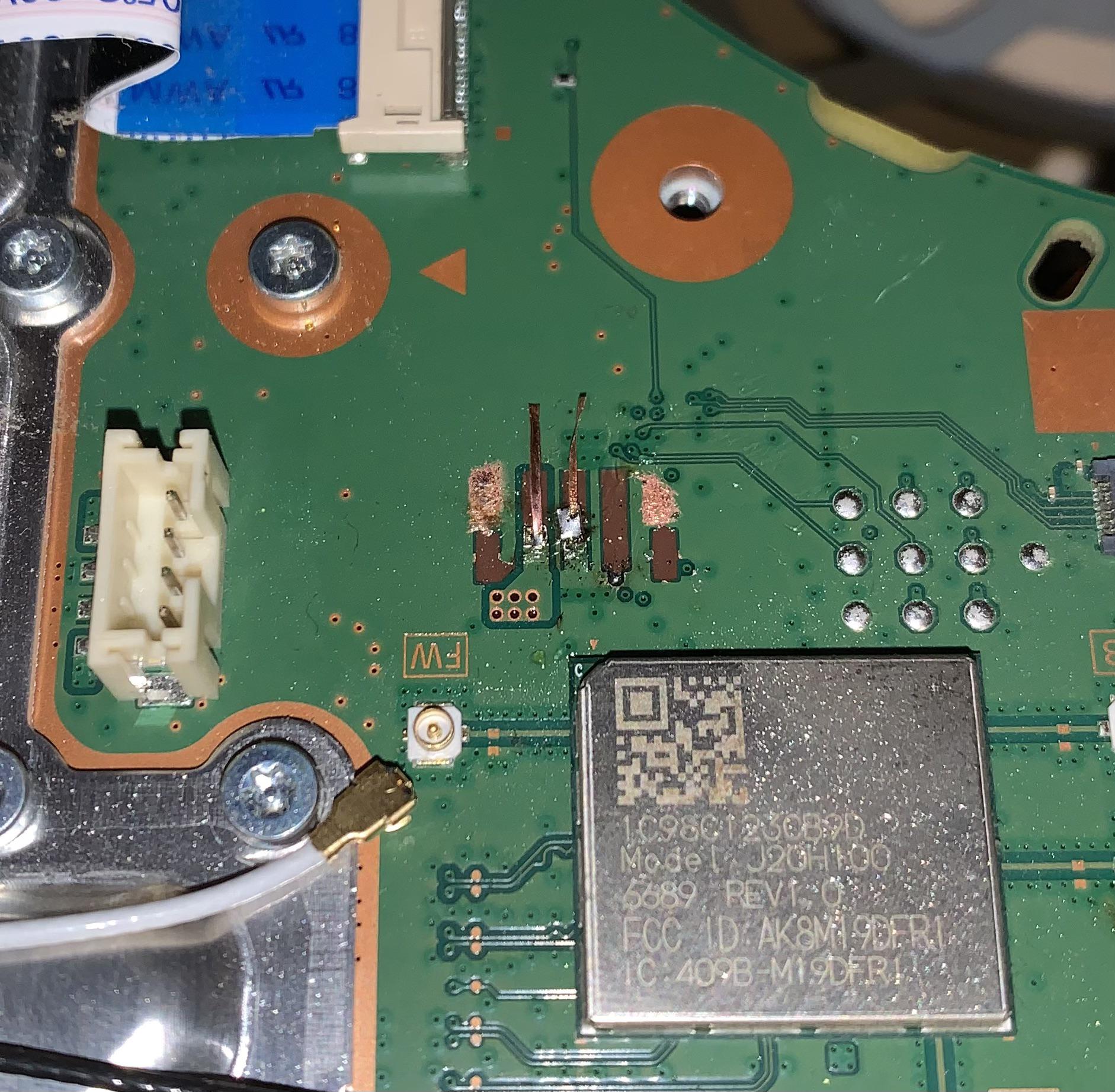

When the old port ripped pads off the board, we rebuild those connections first. We tell you if this applies before starting.
If the new port alone won't fix the picture, the fault is further in. That's quoted separately after diagnosis, and you decide whether to go ahead.
Drop your PS5 off by 5 PM and it's usually ready the same evening. Later than that, plan on pickup after we open at 10 the next morning. Torn pads, a fault past the port such as the retimer chip, or another problem found in testing can add time, and we call you before doing more work.
Live prices from our shop price sheet. Parts and labor included, with a 90-day warranty.
| Model | HDMI Replacement |
|---|---|
| PlayStation 5 Pro | $149.99 |
| PlayStation 5 | $109.99 |
The guys got me in very last minute and gave me an extremely reasonable deal to get my ps5 hdmi port and cleaning repaired and done! it was fast easy and very helpful. 10/10 would recommend for all tech repairs!Amin Gaines · PS5 HDMI port · Google review
Evelyn was a great help getting my hdmi for my ps5 repaired. Highly recommend!Fyskii Sukuhana · PS5 HDMI port · Google review
They are good people they help me fix my hdmi port ps5 and they will work with your budget they really care about the communityIm just Keeping it real · PS5 HDMI port · Google review
Real customer reviews from Google and Yelp, quoted word for word. … marks where a longer review was shortened.
Covered Everything protects your phone plus up to 25 more devices, like consoles, laptops and tablets, for $19.99 a month. Set it up when you collect your repair.
How Covered worksOn parts and workmanship.
$99 per claim on this PS5, $50 on your phone. Cancel anytime.
Bring it in and we handle the claim with you.
For a PS5 with a broken port, repair is almost always the right call. The port is a small part, and the expensive pieces (processor, SSD, power supply) are usually untouched. A new console costs several times more, and you'd be downloading your whole library again. Replacement only starts to make sense when the board has other serious damage, like a failed processor or liquid damage, and the free diagnostic tells you that before you spend anything.
Port kits and videos make this look like a quick job. The PS5 board is thick and layered with heavy copper that soaks up heat, so a hobby iron often can't melt the joints evenly. People end up prying, pads tear, and a port swap becomes a trace rebuild, all a few inches from conductive liquid metal. Safe things to try: another cable, another TV input and another TV. If you've already opened it and see torn pads, or it no longer powers on, stop there and bring it in with every screw in a bag.
Drop it off by 5 PM and it's usually ready the same evening. After 5 PM, it's normally ready the next morning. Extra board damage can add time, and we'll call you if it does.
A port repair doesn't touch the SSD, so games and saves usually stay right where they are. We can't promise that on any repair, so if we see a risk to your data we tell you before starting. Cloud saves through PS Plus are a good backup either way.
Yes. That's a port with cracked solder joints or damaged pins, and it usually gets worse until there's no picture at all. Fixing it early can mean less board damage.
In most cases, yes. The port repair costs a fraction of a new console and you keep your setup. If the diagnostic shows deeper damage that makes repair a bad deal, we'll say so.
It could, so test first. Try a different HDMI cable, a different input on the TV and, if you can, a different TV. If none of that works and the PS5 still powers on, the port is the likely suspect.
Yes. Both use a board-mounted HDMI port that gets the same micro-soldering repair. The exact price for each model is shown on this page.
Yes. Xbox One, Xbox Series X|S and PS4 HDMI ports are repaired on the same bench. See our console HDMI port repair page for details.
Yes. Ship it from anywhere in the US and we return it with free insured shipping. Pack it well, with the HDMI cable unplugged.
Free diagnostic when it arrives. Free insured shipping back.
