Xbox Repair in Charlotte, NC
Xbox One, One S, One X, Series S and Series X repaired at board level at the University City bench. Free diagnostic, 90-day workmanship warranty.
We repair Xbox One, One S, One X, Series S and Series X at board level in Charlotte, including HDMI ports with jumper-wire trace repair, power, overheating and disc drives. Most Xbox jobs are finished the same or next day. There's no charge for the diagnostic, the exact price for your Xbox is listed on this page, and the repair is backed by a 90-day warranty.
Signs you need this repair

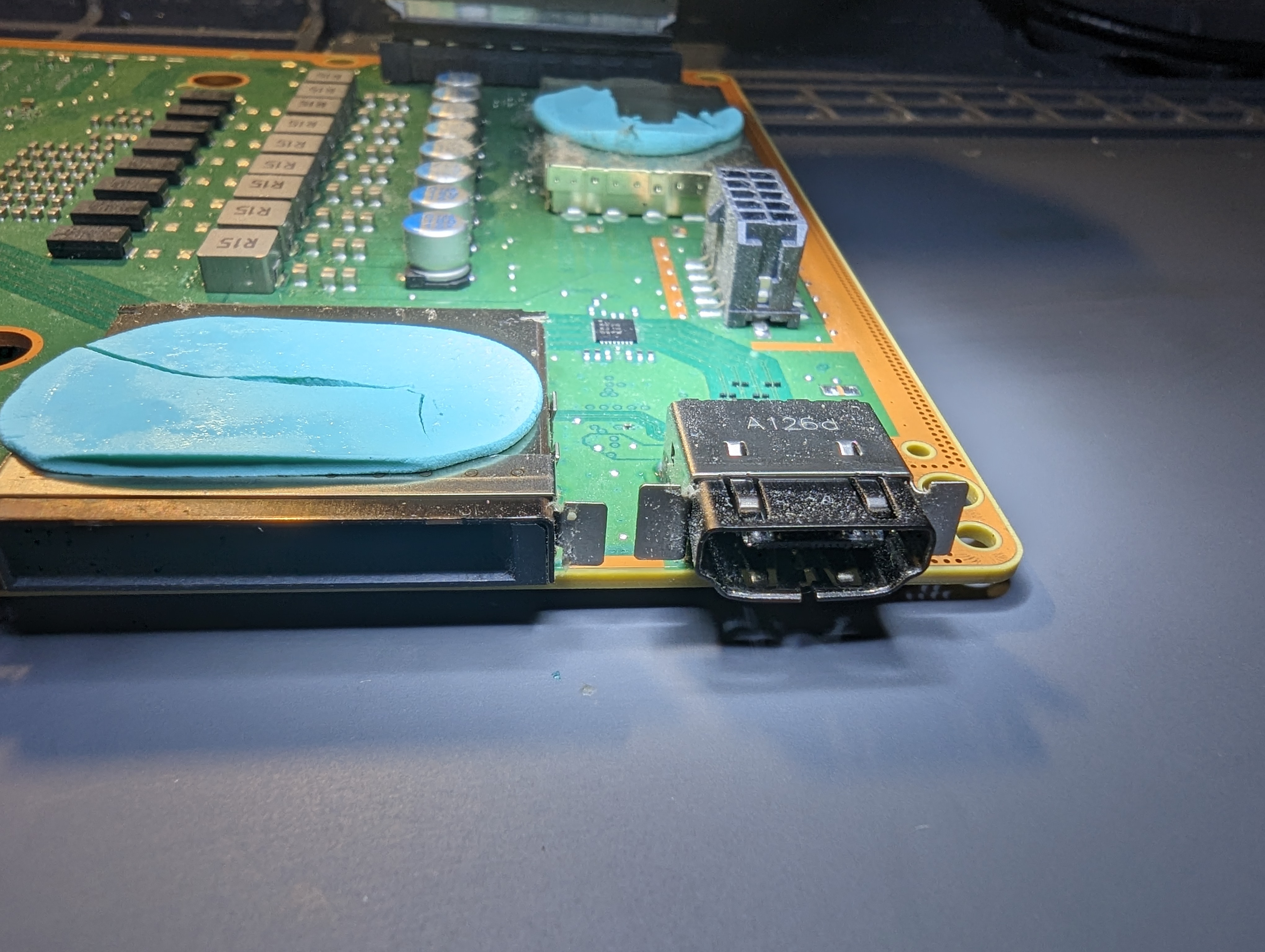

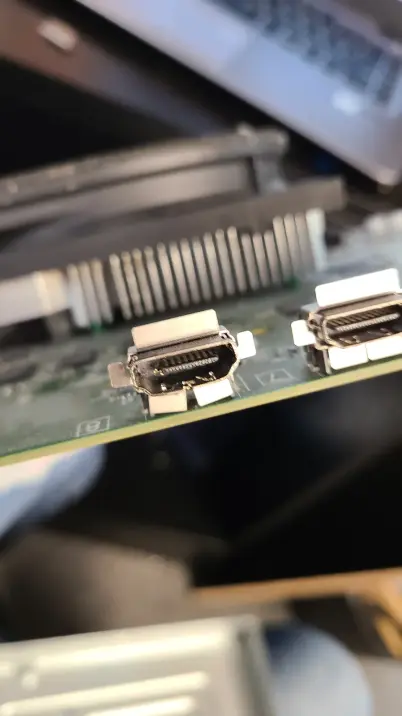

The Xbox starts up but the TV doesn't see it. Usually the HDMI port, sometimes the chip behind it.
No sound, no light on the power button. Often the power supply, which is internal on the One S, One X and Series consoles.
The console starts but never gets past the logo, or restarts in a loop.
The Xbox Startup Troubleshooter appears every time and the console won't reach the home screen. That's usually a storage or update problem.
Grinding, discs not loading, or a tray that won't open on disc models.
Overheating is less common on Series consoles, but older Xbox One units get loud once dust builds up.
What usually causes it
On Series X and Series S especially, a damaged port often tears the contact traces off the board with it.
Surges and age take out internal power supplies. The original Xbox One uses an external brick that can fail on its own.
Xbox One, One S and One X use a mechanical hard drive. When it fails you get logo loops, troubleshooter screens and very slow loads.
Years of dust and drying paste push temperatures up, especially on the original Xbox One and One X.
Lasers weaken and gears wear, and the drive board is paired to the console.
How we fix it
- 1Free diagnostic and quote
We test power, video, storage and the drive, then give you a quote before any work starts.
- 2HDMI and trace repair

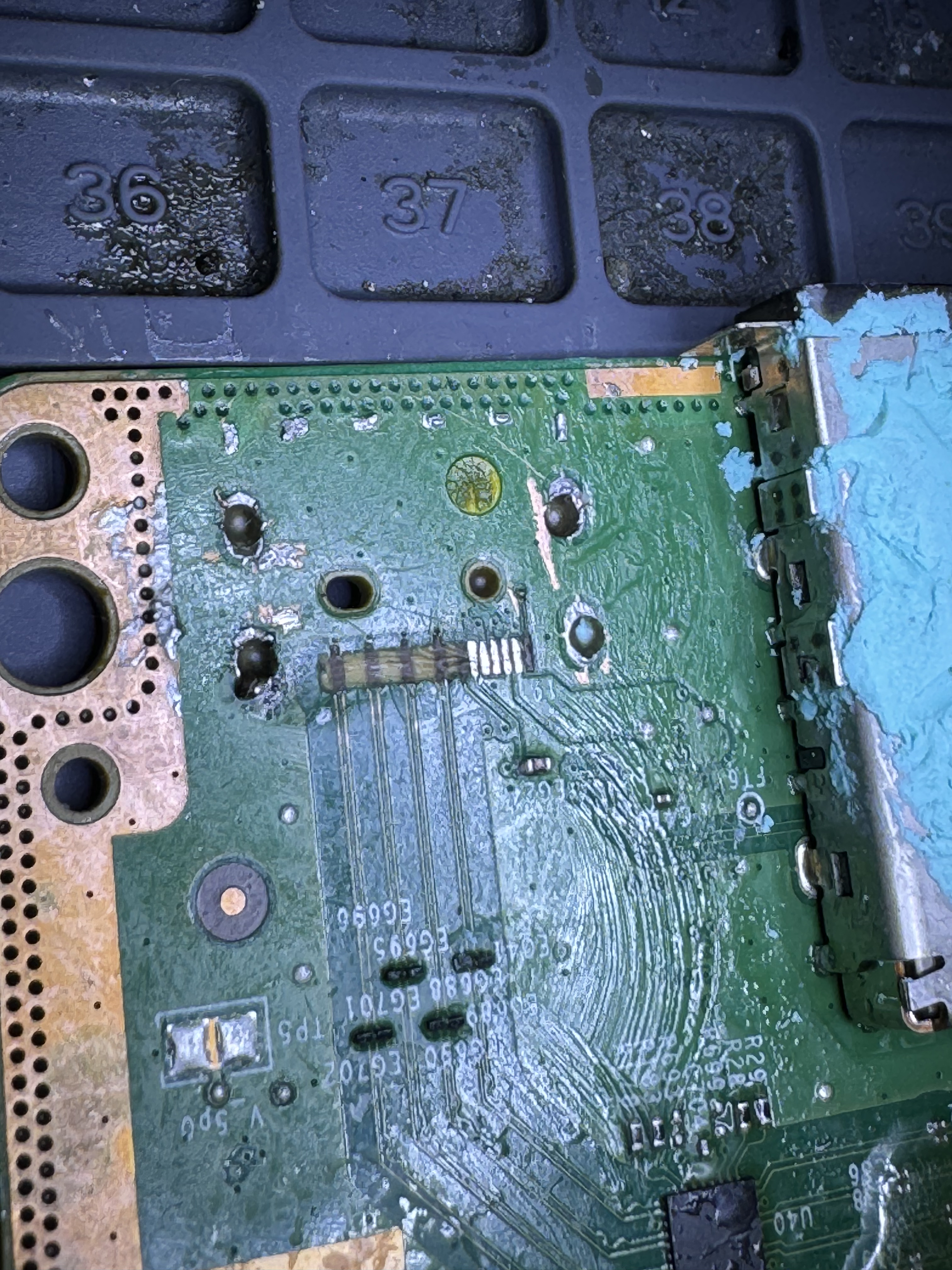

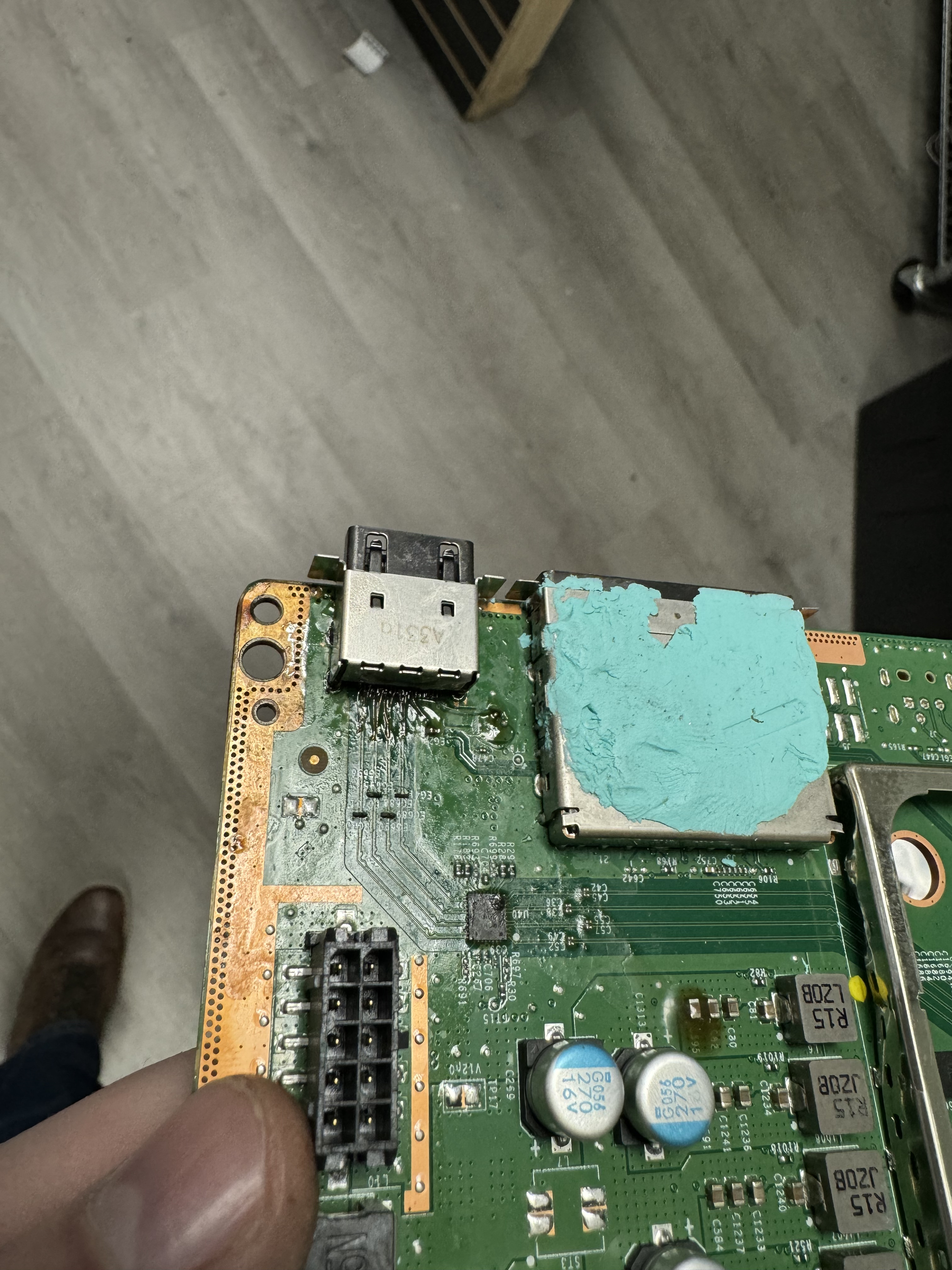

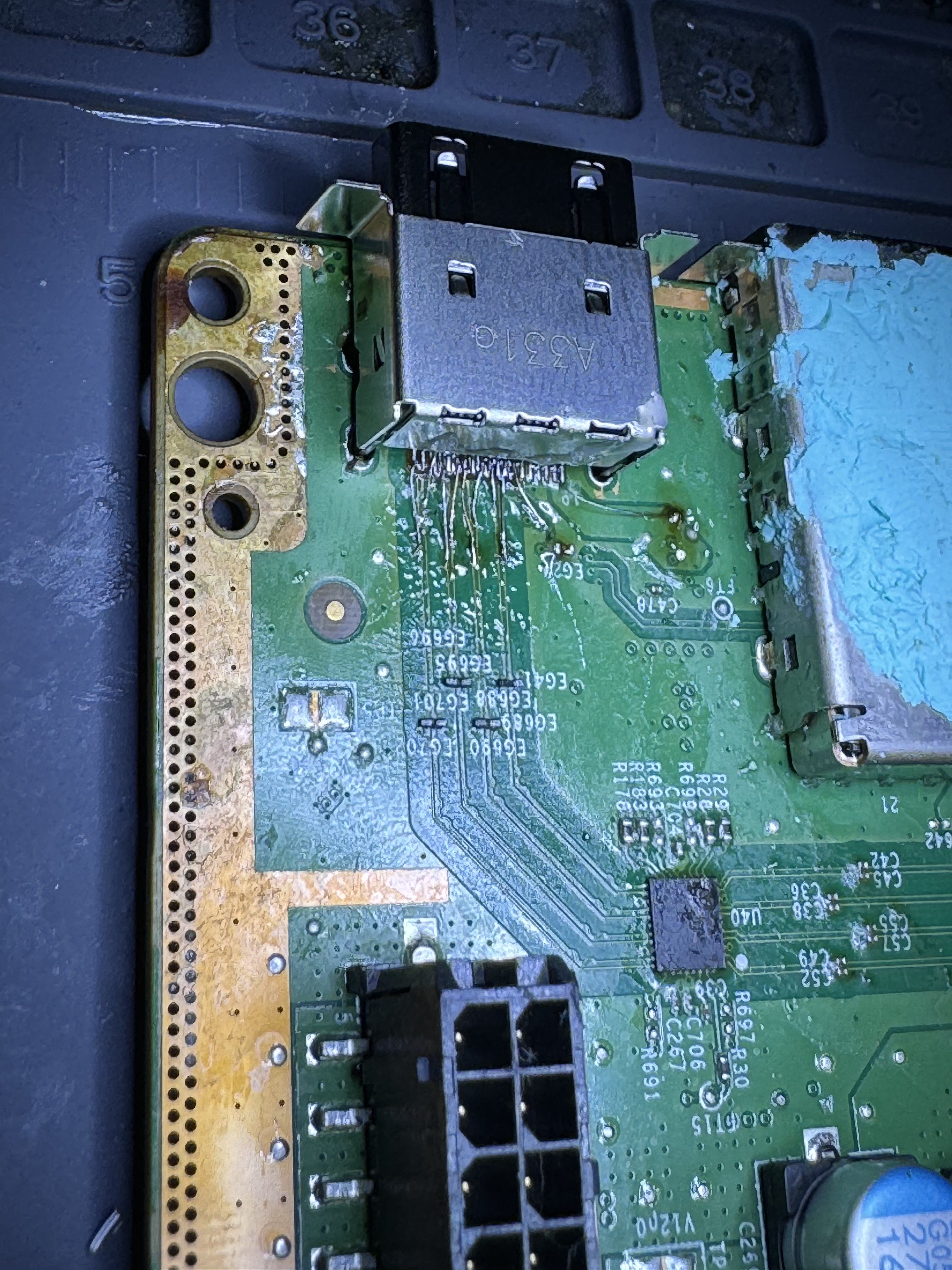

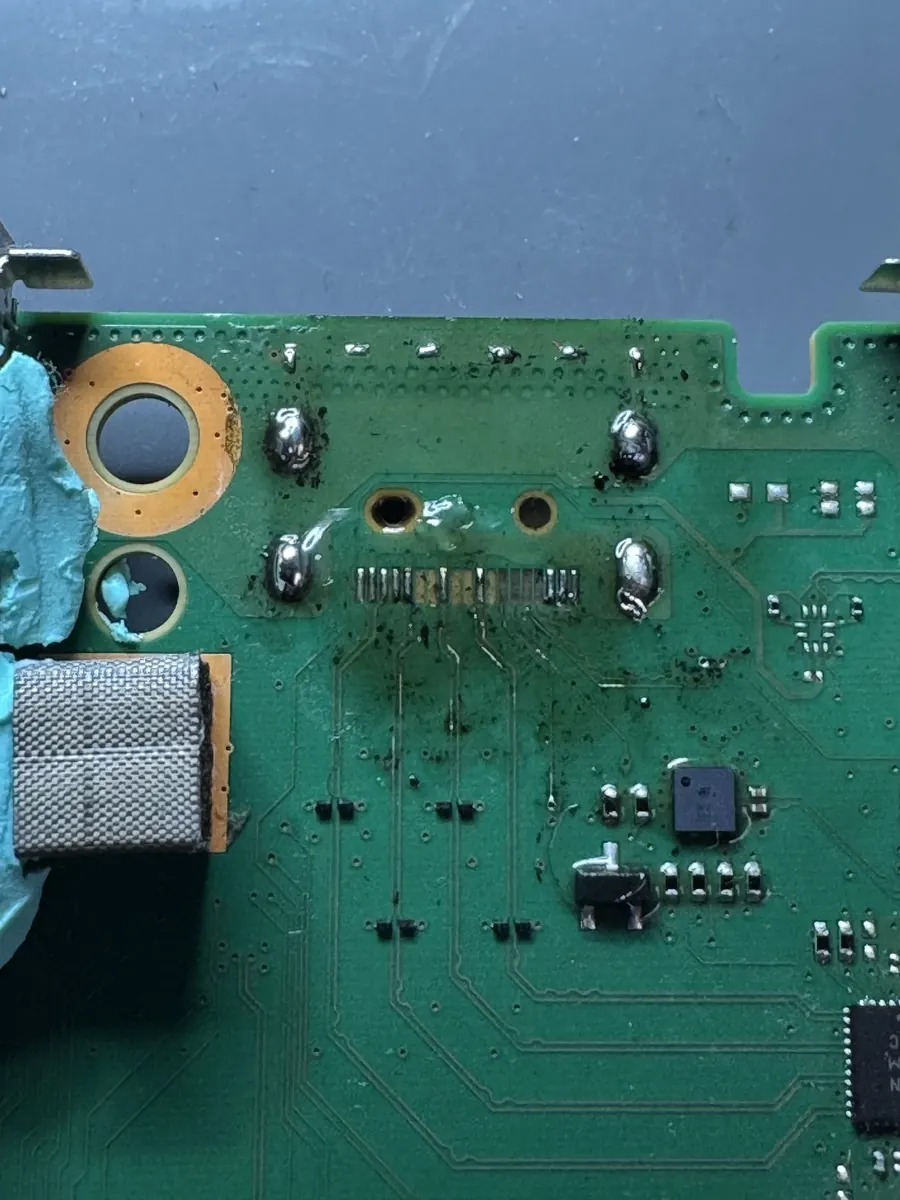

The damaged port is removed under a microscope. Where the traces tore off, we rebuild each connection with fine jumper wire, then solder in the new port.
- 3Power supply and board power
A failed power supply is replaced with a new unit, not rebuilt, for safety. If the fault is on the board, we trace it to the failed component.
- 4Storage repair
On Xbox One models we replace the failing hard drive and restore the system with Microsoft's offline update. Series consoles store everything on a built-in SSD that's tied to the console, so we explain the options there.
- 5Drive and thermal work
Disc drives are repaired around their paired board. Overheating consoles get a teardown, clean and fresh paste.
- 6Load test and walkout
We run games and watch temperatures before handing it back, and the repair leaves with its 90-day warranty.
Xbox generations and what changes
The model decides which repairs make sense, and this page lists the exact price for yours.
External power brick and an internal hard drive. Hard drive replacement and brick testing come up a lot.
Internal power supply and hard drive. HDMI, power and storage are the common jobs.
Internal power supply and a built-in SSD tied to the console. HDMI damage with torn traces is the most common repair.
How long it takes
Most Xbox repairs are done the same or next day. HDMI jobs with jumper-wire trace repair and board-level power faults take longer than a straight part swap, and a hard drive replacement adds time for the system restore. You'll get an estimate with your quote.
Xbox Repair prices by model
Live prices from our shop price sheet. Parts and labor included, with a 90-day warranty.
| Model | HDMI Replacement | Overheating | Ethernet |
|---|---|---|---|
| Xbox Series X | $124.99 | $99.99 | $124.99 |
| Xbox Series S | $110 | $99 | $99.99 |
| Xbox One X | $99.99 | $79.99 | $99.99 |
| Xbox One S | $89.99 | $79.99 | $99.99 |
| Xbox One | $89.99 | $79.99 | $99.99 |
Models we repair
What customers say
EXCELLENT WORK!!!!!!!!! Prices Are Beyond Fair , Customer Service Was Wonderful & Helpful! Recommend Anyone Who Needs Games Or Phones Repaired. Awesome Stickers Too That They Provide. 10/10 ExperienceDeasaan Sargent · Console repair · Google review
… Definitely A five star rank for me with the experience I had I bring all of my electronics here PlayStation iPad iPhone, android PS5 Xbox I mean whatever it is if it’s electronic, I’m pretty sure they can fix itCoel Young · Console repair · Google review
I got my ps5 repaired in 3 hours and the customer service was excellent. Tony was very nice and he was fantastic!mani mms · Console repair · Google review
Real customer reviews from Google and Yelp, quoted word for word. … marks where a longer review was shortened.
Protect your Xbox and everything else at home
Covered Everything protects your phone plus up to 25 more devices, like consoles, laptops and tablets, for $19.99 a month. Set it up when you collect your repair.
How Covered works90-day warranty
On parts and workmanship.
Covered Everything
$99 per claim on this Xbox, $50 on your phone. Cancel anytime.
Fixed here, on our bench
Bring it in and we handle the claim with you.
Before you bring it in
- If the Xbox still works, check that cloud saves are synced. Most games save to the cloud automatically.
- Note your model: the name is on the console, and the details are on the label underneath.
- Bring the power cord, or the brick for an original Xbox One.
- Remove a game disc from the tray if it opens.
- Tell us about any earlier repair attempts.
Repair or replace?
For a Series X or Series S, repair is almost always worth it. An HDMI port, even with trace repair, or a power supply costs far less than a new console. For an older Xbox One, it depends on the fault. A power supply or hard drive is usually worth doing. Several faults at once on an older original Xbox One may not be. A Series console with a failed internal SSD is a tougher case because the SSD is tied to the console, and we'll walk you through that honestly.
Thinking of fixing it yourself?
Some Xbox repairs are DIY-friendly. Swapping a dead brick on an original Xbox One is plug and play. Running the offline system update from a USB drive can fix some update problems. Inside the console it gets harder. Series consoles have tight clips and a heavy heatsink, the power supply holds charge, and HDMI ports on Series boards tend to take traces with them when they come off. A failed home HDMI swap is one of the harder repairs to recover from, so stop if you see torn copper and bring it in.
After your repair
- Unplug the HDMI cable before moving the console.
- Use a surge protector.
- Keep vents clear, and on a Series X, leave space above the top vent.
- Let system updates finish before turning the console off.
- Any repeat of the repaired fault within 90 days is covered, so bring it straight back.
Questions people ask
My Xbox won't turn on at all. Is it dead?
Usually not. It's often the power supply, or the brick on an original Xbox One. Board faults are traced to the failed part. We'll tell you after the free diagnostic.
The TV says no signal but the Xbox is on.
That's almost always the HDMI port. On Series consoles the traces often tear with it, and we rebuild them with jumper wire before fitting the new port.
It's stuck on the Xbox logo.
On an Xbox One, a failing hard drive is the usual cause. On a Series console, it can be storage or a failed update. The diagnostic narrows it down.
It only boots to the troubleshooter screen.
That points to a storage or system update problem. Sometimes the offline update fixes it; sometimes the drive needs replacing.
Can you replace my Xbox One hard drive?
Yes. We fit a new drive and restore the system with Microsoft's offline update. Games then download again.
Can you replace the SSD in a Series X or S?
The internal SSD is tied to the console, so it isn't a simple swap. We'll explain what's possible for your console. Expansion cards for extra storage are a separate, easy add.
How long does Xbox repair take?
Most repairs are same or next day.
Do you fix Xbox controllers?
Yes: stick drift, buttons, triggers, charging ports and shells. See our controller drift page.
Can I protect my Xbox after the repair?
Covered Everything covers one phone plus up to 25 devices, consoles included, for a monthly fee. Ask us at pickup how claims work for your Xbox.
Can I mail my Xbox in?
Yes. Mail-in works from anywhere in the US with free insured return shipping.
